Wafer Butterfly Valve acc. to EN593

Phenolic Backed Cartridge Seat BFV with Hand Lever

Face to Face Standard: DIN EN558-1 Series 20, API609

Flange Connection Standard: EN1092 PN6/10/16, ANSI B16.1, JIS 10K

Top Flange Standard: ISO 5211

Range of Application: Water, Sea Water, Air, etc.
Size	Pressure Testing			Working Temperature °C
	PN	Shell	Sealing
DN32-DN300	1.6Mpa	2.4 Mpa	1.76 Mpa	-10 ~ +120

Materials of Main Parts

We reserve the right to make technical modifications.

★ WDN150 is Aluminum Alloy Handle,above is Malleable Iron Handle.

Without Pm With Pm

Wafer Butterfly Valve acc. to EN593

Phenolic Backed Cartridge Seat BFV with Switcher Lever

Face to Face Standard: DIN EN558-1 Series 20, API609

Flange Connection Standard: EN1092 PN6/10/16, ANSI B16.1, JIS 10K

Top Flange Standard: ISO 5211

Range of Application : Water, Sea Water, Air, etc.
Size	Pressure Testing			Working Temperature °C
	PN	Shell	Sealing
DN32-DN300	1.6 Mpa	2.4 Mpa	1.76 Mpa	-10 ~+120

Materials of Main Parts

We reserve the right to make technical modifications.

Without Pm With Pm

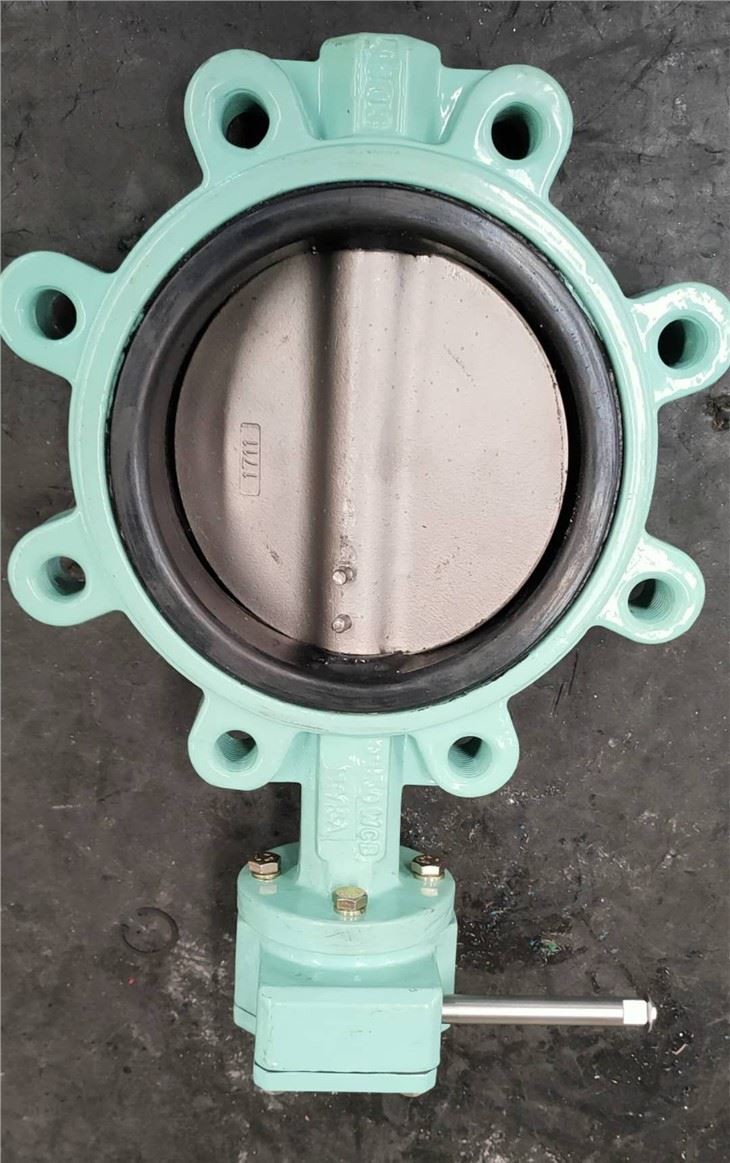

Wafer Butterfly Valve acc. to EN593

Phenolic Backed Cartridge Seat BFV with Switcher Gear Operator

Face to Face Standard: DIN EN558-1 Series 20, API609

Flange Connection Standard:EN1092 PN6/10/16, ANSI B16.1, JIS 10K

Top Flange Standard: ISO 5211

Range of Application : Water, Sea Water, Air, etc.
Size	Pressure Testing			Working Temperature •c
	PN	Shell	Sealing
DN32-DN300	1.6 Mpa	2.4 Mpa	1.76 Mpa	■10 ~+120

Materials of Main Parts

Size	Face to face lengthacc. to DIN EN 558-1		Dimensions								Weight
DN mm	C mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	A mm	B mm	G mm	H mm	Kg
40	33	35	53	155	53	45	125	73	102	40	6.1
50	43	46	53	155	53	45	125	73	102	40	6.8
65	46	49	53	155	53	45	136	82	46	40	7.5
80	46	49	53	155	53	45	142	91	130	40	8.2
100	52	55	53	155	53	45	163	107	154	40	9.7
125	56	59	53	155	53	45	176	127	180	40	11.3
150	56	59	53	155	53	45	197	143	210	40	12.7
200	60	64	76	237	76	63	230	170	264	40	22.3
250	68	72	76	237	76	63	268	204	324	40	31.3
300	78	81	76	225	78	78	292	240	374	46	42.6
