A safety valve is a crucial component in many industrial systems, designed to protect equipment and personnel by releasing excess pressure when it reaches a predetermined level. One of the key parts of a safety valve is the nozzle, which plays a vital role in the valve's overall performance. In this blog post, as a safety valve supplier, I will delve into the functions of the nozzle in a safety valve and explain why it is so important.
Understanding the Basics of a Safety Valve
Before we discuss the nozzle's function, let's briefly review how a safety valve works. A safety valve is typically installed in a system where there is a risk of over - pressure, such as in boilers, pressure vessels, and pipelines. When the pressure inside the system exceeds the set pressure of the safety valve, the valve opens to release the excess fluid (either gas or liquid) until the pressure drops back to a safe level.
The main components of a safety valve include the valve body, the disc, the spring, and the nozzle. The valve body houses all the internal components, the disc is the part that seals the valve opening, the spring provides the force to keep the disc closed under normal operating conditions, and the nozzle is the passage through which the fluid flows when the valve opens.
Functions of the Nozzle in a Safety Valve
1. Flow Regulation
The primary function of the nozzle in a safety valve is to regulate the flow of the fluid. The size and shape of the nozzle are carefully designed to control the rate at which the fluid can escape from the system when the valve opens. A well - designed nozzle ensures that the valve can discharge the required amount of fluid in a timely manner to prevent over - pressure.
The flow capacity of a safety valve is determined by the area of the nozzle opening. According to the laws of fluid mechanics, the flow rate of a fluid through an orifice (such as a nozzle) is proportional to the square root of the pressure difference across the orifice and the area of the orifice. Therefore, by choosing the appropriate nozzle size, we can ensure that the safety valve can handle the maximum expected flow rate in the system.
For example, in a high - pressure steam system, a larger nozzle may be required to quickly release the excess steam and prevent damage to the equipment. On the other hand, in a low - pressure gas system, a smaller nozzle may be sufficient to maintain the required flow rate.
2. Pressure Reduction
Another important function of the nozzle is to reduce the pressure of the fluid as it passes through. When the safety valve opens, the high - pressure fluid in the system enters the nozzle. As the fluid flows through the converging and diverging sections of the nozzle, its velocity increases, and according to Bernoulli's principle, the pressure decreases.
This pressure reduction is essential for several reasons. Firstly, it helps to prevent the sudden and violent release of high - pressure fluid, which could cause damage to the surrounding equipment and pose a safety hazard to personnel. Secondly, it allows the fluid to expand and cool down as it passes through the nozzle, which is particularly important in systems where the fluid is a gas or a vapor.
3. Fluid Direction
The nozzle also plays a role in directing the flow of the fluid. It is designed to ensure that the fluid flows smoothly and evenly out of the valve, minimizing turbulence and pressure losses. A properly designed nozzle can also direct the fluid away from sensitive equipment or areas where it could cause harm.
In some safety valves, the nozzle may be angled or shaped in a specific way to control the direction of the fluid discharge. This is especially important in applications where the discharged fluid needs to be directed to a specific location, such as a flare stack or a drainage system.
4. Sealing and Seating
The nozzle provides a seating surface for the disc of the safety valve. When the valve is closed, the disc sits on the nozzle seat, creating a tight seal to prevent any leakage of the fluid. The quality of the seal between the disc and the nozzle seat is crucial for the proper functioning of the safety valve.
The nozzle seat is usually made of a hard and wear - resistant material to ensure a long - lasting seal. The surface finish of the nozzle seat is also carefully controlled to minimize the risk of leakage. Any damage or wear to the nozzle seat can lead to valve leakage, which can compromise the safety of the system.
Importance of Nozzle Design in Safety Valves
The design of the nozzle has a significant impact on the performance of the safety valve. A poorly designed nozzle can lead to several problems, such as insufficient flow capacity, excessive pressure drop, uneven flow distribution, and leakage.
When designing a nozzle for a safety valve, several factors need to be considered, including the type of fluid (gas or liquid), the operating pressure and temperature of the system, the required flow rate, and the material compatibility. For more detailed information on the design and selection of safety valves, you can refer to our Lotoke Special Alloy Steel Valve Catalogue.
In addition, the manufacturing process of the nozzle is also critical. High - precision machining is required to ensure the accuracy of the nozzle dimensions and the smoothness of the internal surface. Any defects in the manufacturing process, such as rough surfaces or incorrect dimensions, can affect the performance of the nozzle and the safety valve as a whole.
Advanced Nozzle Technologies
With the development of technology, there have been many advancements in nozzle design for safety valves. For example, some modern nozzles are designed with a contoured shape to optimize the flow characteristics and reduce pressure losses. These contoured nozzles can provide a more efficient and stable flow of fluid compared to traditional straight - bore nozzles.
Another area of development is the use of advanced materials in nozzle manufacturing. Materials such as titanium alloys offer excellent corrosion resistance and high strength - to - weight ratios, making them suitable for use in harsh environments. For more information on our products using advanced materials, you can check out our Lotoke Titaniuml Alloy Butterfly Valve Technical Manual.
Conclusion and Call to Action
In conclusion, the nozzle is a critical component in a safety valve, performing functions such as flow regulation, pressure reduction, fluid direction, and sealing. The proper design and selection of the nozzle are essential for ensuring the reliable and efficient operation of the safety valve.

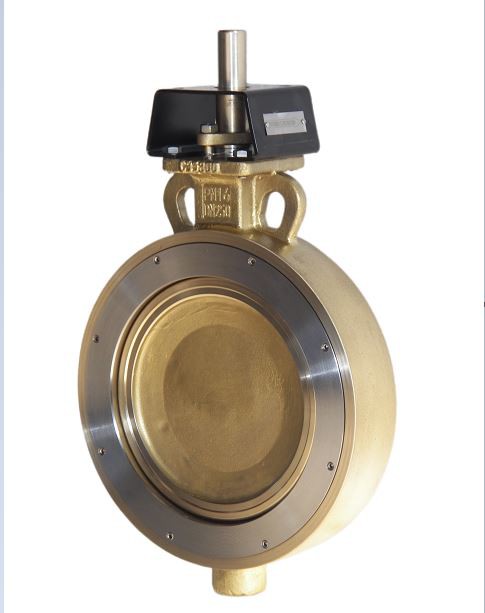

As a safety valve supplier, we offer a wide range of safety valves with high - quality nozzles designed to meet the diverse needs of different industries. Our High Performance Butterfly Valve Series 5000 is a great example of our commitment to providing top - notch safety valve solutions.
If you are in need of safety valves for your industrial applications, we encourage you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to assist you in selecting the right safety valve and nozzle combination for your system.
References
- ASME Boiler and Pressure Vessel Code, Section VIII, Division 1.
- API 520 and API 526 Standards for Sizing, Selection, and Installation of Pressure - Relieving Devices.
- Fluid Mechanics textbooks, such as "Fluid Mechanics" by Frank M. White.
